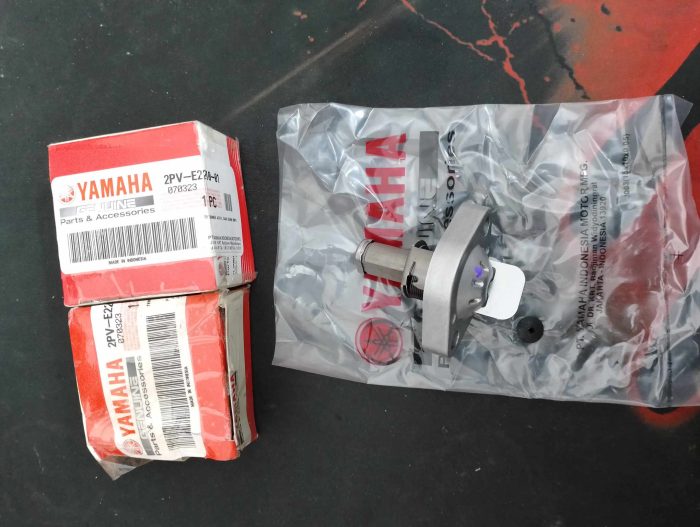

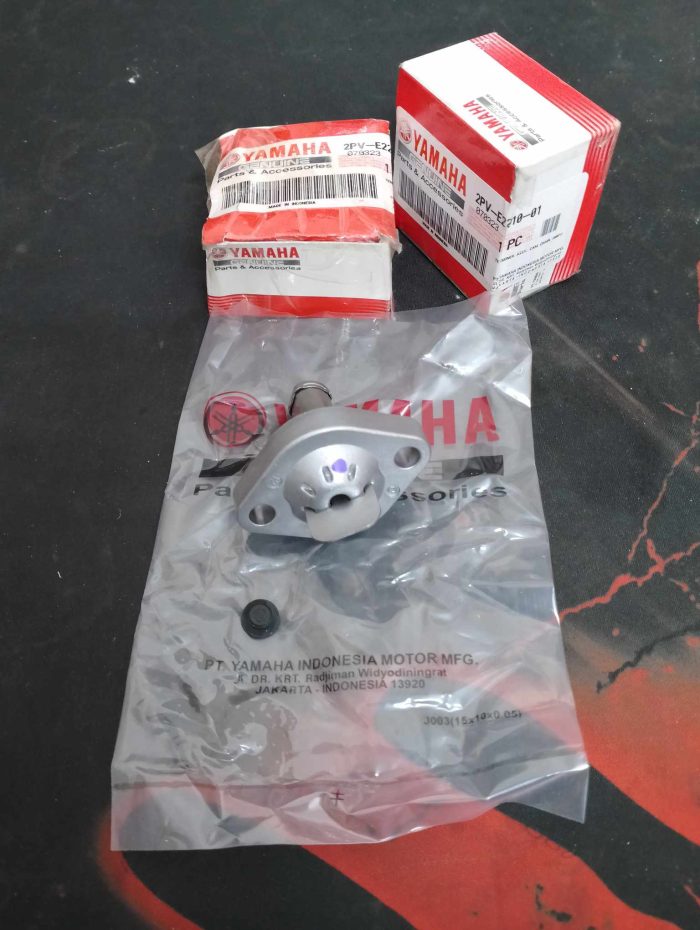

yamaha r15 v3 timing chain adjuster

haw to use yamaha r15 v3 timing chain adjuster ?

Adjusting the timing chain on a Yamaha R15 V3 involves a precise process to ensure proper engine timing and performance. Here’s a general guide on how to adjust the timing chain:

Note: It’s essential to have the motorcycle service manual for specific instructions and torque values. If you’re not confident or don’t have the necessary tools, it’s advisable to seek professional assistance.

Prepare the Bike:

• Ensure the motorcycle is on a stable surface.
• Remove any parts necessary to access the timing chain cover.

Locate the Timing Chain Cover:

• The timing chain cover is usually on the left side of the engine.
• It covers the timing chain and sprockets.

Remove the Timing Chain Cover:

• Use the appropriate tools to remove the bolts securing the timing chain cover.
• Carefully take off the cover, exposing the timing chain and sprockets.

Locate the Timing Chain Tensioner:

• The timing chain tensioner is a component that maintains proper tension on the timing chain.
• On the Yamaha R15 V3, it might be an automatic or manual tensioner.

Automatic Tensioner (if applicable):

• If your bike has an automatic tensioner, it should adjust itself. However, if there’s a manual adjustment feature, follow the manual’s instructions to adjust it properly.

Manual Tensioner (if applicable):

• If there is a manual tensioner, it usually has a locknut and an adjusting bolt.
• Loosen the locknut using the appropriate wrench.
• Turn the adjusting bolt to either increase or decrease tension as needed.
• Refer to the service manual for the correct tension specifications and adjustment procedure.
• Once adjusted, tighten the locknut to secure the position.

Inspect and Reassemble:

• Inspect the timing chain for wear and damage.
• Make sure everything is clean and free of debris.
• Reinstall the timing chain cover and tighten the bolts to the specified torque.

Check Timing:

• After adjusting the timing chain, it’s crucial to verify that the engine’s timing is correct.
• Follow the timing verification procedure outlined in the service manual.

Double-Check:

• Recheck all fasteners and bolts to ensure everything is properly tightened.
• Start the engine and listen for any unusual noises or vibrations.

Consult the Service Manual:

• Always refer to the specific service manual for your motorcycle model for detailed instructions, torque specifications, and any model-specific nuances.

If you’re unsure or uncomfortable with any of these steps, it’s highly recommended to consult a professional mechanic or the Yamaha service center for assistance. Incorrect timing chain adjustment can lead to serious engine damage.
